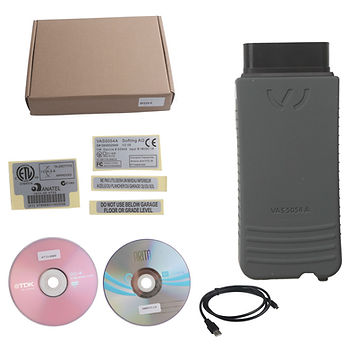

Details about new version VAS 5054A & VAS 6154
New models VAS 5054A/VAS 6154 diagnostic tool update note is here which will share with the new verison v4.23’s requirement for computer and the functions list. Here we go to view more info.
Item No: sp33-c, sp33-b, SP33-BO, sp308
Computer Restrictions
Windows 10 only supports the new diagnostic interface VAS 6154 (known as the WLAN remote head). Users of the older models VAS 5054, VAS 5054A and VAS 5055 can continue to use the Windows 7 i.do client on existing systems until 2019 or acquire the Windows 7 i.do. client from IT Client Support for replacement devices. The new diagnostic interface can be used with both operating systems. Please place any necessary orders with Workshop Equipment in good time.
Functions in version 4.2
The key features newly added or revised in release 4.2 are
described briefly in this section and the additional CCB_DS IDs implemented are cited.
CCB 1127 The update check when starting ODIS Service should be "silent".
CCB 1140 Functional tester send present request only once
CCB 1589 support of new VW cross section load books
CCB2004 Display of a support guideline
CCB2015 Farsi (RTL) language support
CCB1692 Display connection quality VAS6154
CCB1968 trace records for DoIP
CCB2038 Read and display DTC snapshots
Defect resolution in version 4.2
The defects resolved in release 4.2 are described briefly in this section.
19502 In the case of end-of-life vehicles (European market), the diagnostic entry remains at "Waiting for synchronization" hang
16858 Update OS 2.2.4: VAS 6558-6558A ODIS is available twice in the programs and functions after the update.
18569 Flash aborted while flashing the climate control unit via DoIP
18648 OS 3.1 TPI Reference to diagnostics object (Extend inspection plan) Partially not functional
18751 Measurement technology is not automatically removed or uninstalled with ODIS-Service Deinstallation
18891 Softing feature on Windows 10 computer
19131 Control unit 0025 Immobilizer is not automatically identified when boarding the A8_2003
19717 Network status is not detected correctly on OS 4.0 and VAS6154 USB
19182 ODIS Service 4.0.0: The green arrow is missing on the Finish / Next button
19207 Read out identification data, ident status is not displayed in the print log.
19227 Log files are filled with ArrayList messages
19247 ODIS S: different tester present behavior between diagnosis and flashing
19251 OS 4.1.0 Build 41_3_0_1 contains the wrong Diagnostic_Data_Hook
19278 Entering a special character "_" or "-" (underscore, hyphen) is not possible during installation in the host name of VAS 6154
19289 Evaluation of unauthorized event memory incorrect
19296 Saved diagnostic session can not be loaded
19298 Error when logging on to the CPN via the button Infomittel- because of certificate VW-CA-Proc-07
19302 Information about the VCI at the top of the interface disappears when the language is switched
19313 ODIS Service 4.1.3: The diagnostic protocol does not state that communication is via DoIP.
Defect resolution in version 4.2
19318 OS 4.0.0 and 4.1.0: A not yet translated standard text is not displayed in the execution system when using a language as Created, it does not fallback mechanism
19319 OS 4.0.0 and 4.1.0: A text module is not displayed in the execution system when using a language other than Created
19325 OS 4.1.0: When using placeholders with TextIDs, text blocks or ANSI
Text modules come back instead of these texts, a NULL. The placeholder (variable) is displayed correctly.
19350 Spelling errors in the setup.configurator: Special characters instead of special characters
19370 OS 4.1.3 Malfunction of the status display of the network connection
Supported vehicles with Version 4.2
Approved AUDI vehicles
• All AUDI vehicles are supported
Approved Volkswagen vehicles
• All Volkswagen vehicles are supported
Approved Volkswagen Nutzfahrzeuge vehicles
• All Volkswagen Nutzfahrzeuge vehicles are supported
Approved Seat vehicles
• All Seat vehicles are supported
Approved Skoda vehicles
• All Skoda vehicles are supported
Approved Bentley vehicles
• All Bentley vehicles are supported
Approved Lamborghini vehicles
• The following Lamborghini vehicles are supported:
Gallardo from MY09-MY14 (only immobilizer and Radio PIN Code) Aventador und Huracán
Approved Bugatti vehicles
• Bugatti Veyron and Bugatti Chiron are supported
Approved MAN vehicles
• MAN-TGE is supported
